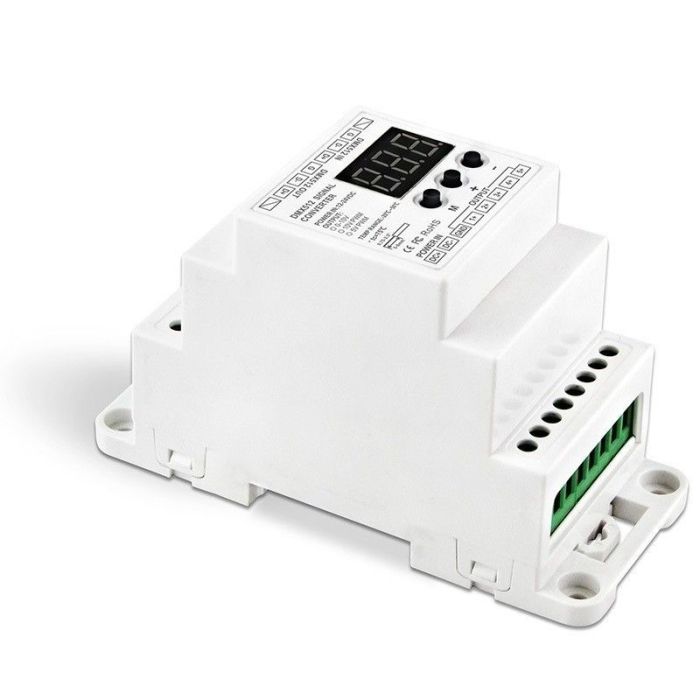

Bincolor BC-835-010V-DIN/BC-835-PWM-DIN Din Rail DMX512/1990 Converter LED Controller

Be the first to review this product

€25.51

In stock

SKU

Bincolor BC-835-010V-DIN/BC-835-PWM-DIN Din Rail DMX512/1990

Product Style

BC-835-010V-DIN

BC-835-PWM5V-DIN

BC-835-PWM10V-DIN

Qty

Bincolor BC-835-010V-DIN/BC-835-PWM-DIN Din Rail DMX512/1990 Converter LED Controller is high quailty LED product for LED Lighting decoration, For big order or customized order, Pls feel free to contact service@agodeu.com

Agodeu.com supply high quality products to Germany, UK, Europe, USA and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card. If you need any help, pls contact us via email: service@Agodeu.com or call us at: 0086 18617080271

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Welcome to use the Din Rail DMX512 to 0-10V converter, which adopted advanced micro-computer control

technology to transfer DMX512/1990 signal to 0-10V signal or PWM 10V、5V signal. 1-5 output channels can be

selected, and each channel can be controlled independently.

Specifications:

Model: DMX512 Signal Converter(BC-835-010V-DIN)

Input voltage: DC12V-DC24V

Input Signal: DMX512/1990

Output Signal: 5CH 0-10V signal

Max output power :5×20mA

DMX512 socket : Terminal Block

Dimension: L111×W46×H66(mm)

Weight (G.W) : 110g

Model:DMX512 Signal Converter(BC-835-PWM5V-DIN)

Input voltage:DC12V-DC24V

Input Signal:DMX512/1990

Output Signal:5CH PWM 5V signal

Max output power:5×40mA

DMX512 socket:Terminal Block

Dimension:L111×W46×H66(mm)

Weight (G.W) : 110g

Model:DMX512 Signal Converter(BC-835-PWM10V-DIN)

Input voltage:DC12V-DC24V

Input Signal:DMX512/1990

Output Signal:5CH PWM 10V signal

Max output power:5×40mA

DMX512 socket:Terminal Block

Dimension:L111×W46×H66(mm)

Weight (G.W):110g

Package Included:

1 Piece of Bincolor BC-835-010V-DIN/BC-835-PWM-DIN Din Rail DMX512/1990 Converter LED Controller

Bincolor_Controller_BC_835_010V_DIN_1

Bincolor_Controller_BC_835_010V_DIN_2

Bincolor_Controller_BC_835_010V_DIN_3

Bincolor_Controller_BC_835_010V_DIN_4

Bincolor_Controller_BC_835_010V_DIN_5

Bincolor_Controller_BC_835_010V_DIN_6

Bincolor_Controller_BC_835_010V_DIN_7

Bincolor_Controller_BC_835_010V_DIN_8

Bincolor_Controller_BC_835_010V_DIN_9

CE and RoHS approved
