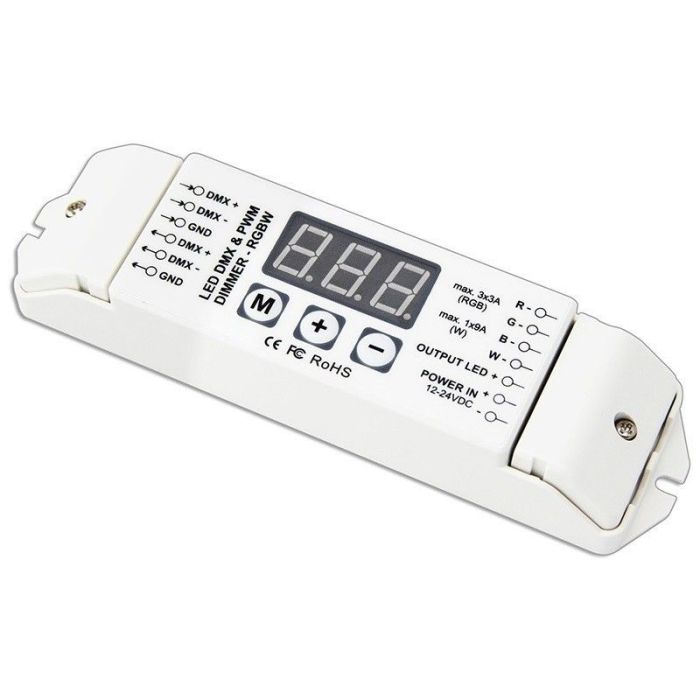

Bincolor BC-834 PWM CV DMX512/1990 12V-24V Decoder Led Controller

Be the first to review this product

€26.43

In stock

SKU

Bincolor BC-834 PWM CV DMX512/1990 12V-24V Decoder

Bincolor BC-834 PWM CV DMX512/1990 12V-24V Decoder Led Controller is high quailty LED product for LED Lighting decoration, For big order or customized order, Pls feel free to contact service@agodeu.com

Agodeu.com supply high quality products to Germany, UK, Europe, USA and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card. If you need any help, pls contact us via email: service@Agodeu.com or call us at: 0086 18617080271

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Feature function:

Automatically adapt input voltage DC12V-24V.

Input standard DMX512 signal; 3-digital-display shows DMX address code..

2(BC-832)/3(BC-833)/4(BC-834) channels output; 4096 grey scales each; logarithmic dimming; lamplight

soft& stable without strobe flash.

DMX Master mode, Slave mode available.

4 (BC-832)/8 (BC-833)/8 (BC-834)color changing modes and 10 speed scales in master mode .

Indicator of the DMX512 signal receiving status.

Wrong wiring protection at DMX input port.Over current protection and short circuit protection.

Power loss memory function.

BC-834

Product Model:BC-834 4CH DMX512 decoder

Input voltage:DC12V-DC24V

Max load current:RGB: 3A×3CH W: 9A×1CH

Max Output Power:RGB:36W×3CH W:108W(12V) / RGB:72W×3CH W:216W(24V)

Grey Scale:4096 levels×4

Input Signal:DMX512/1990

Output Signal:Constant Voltage PWM×4

Decode Channel:4CH

DMX512 socket:Terminal Block

Dimension:L176×W46×H30(mm)

Weight (G.W):175g

Package Included:

1 Piece of Bincolor BC-834 PWM CV DMX512/1990 12V-24V Decoder Led Controller

Bincolor_Controller_BC_834_1

Bincolor_Controller_BC_834_2

Bincolor_Controller_BC_834_3

Bincolor_Controller_BC_834_4

Bincolor_Controller_BC_834_5

Bincolor_Controller_BC_834_6

Bincolor_Controller_BC_834_7

Bincolor_Controller_BC_834_8

CE and RoHS approved
