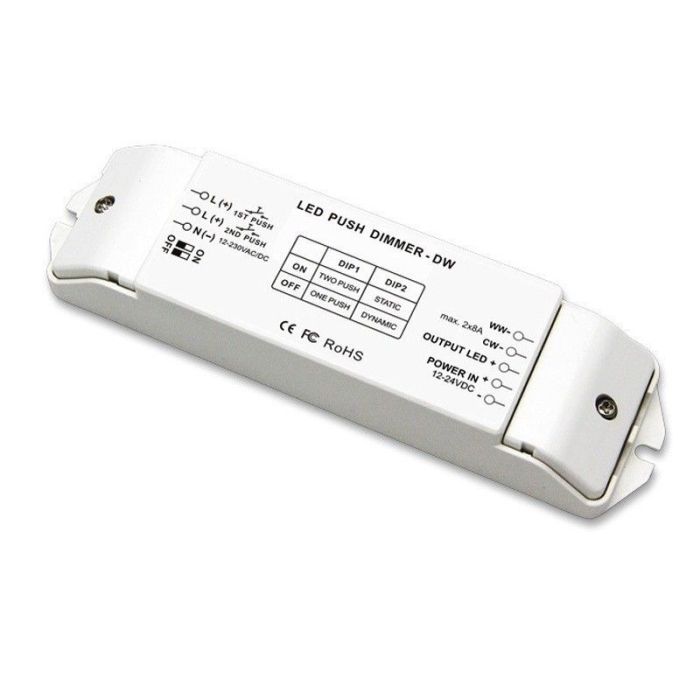

Bincolor BC-422 DIP Switch Duplex Push Dim Button PWM Control Led Controller

€29.13
In stock
SKU
Bincolor BC-422 DIP Switch Duplex Push Dim Button PWM Control

Bincolor BC-422 DIP Switch Duplex Push Dim Button PWM Control Led Controller  is high quailty LED product for LED Lighting decoration, For big order or customized order, Pls feel free to contact service@agodeu.com

Agodeu.com supply high quality products to Germany, UK, Europe, USA and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  If you need any help, pls contact us via email: service@Agodeu.com or call us at: 0086 18617080271

Welcome to use this constant voltage CCT controller, it adopts PWM (Pulse-Width Modulation) digital brightness

control technology; it changes the dimming modes by DIP switch and duplex push dim button, it's suitable for 2 channels'

constant voltage CCT LED lights.

Basic Features:

Automatically adapts to DC12V-24V.

2 output channels, each channel 4096 grey scale, Lamplight soft and stable, without flicker

One PUSH or two PUSHs selectable, Static mode and dynamic mode switchable.

Power loss memory function.

Over current protection, short circuit protection.

Specifications:

Input voltage: DC12V-24V

Max output current: 8A×2CH

Max output power: 96W×2CH W (12V) / 192W×2CH (24V)

Grey scale: 4096 levels × 2

Wroking temperature: -20-55℃

Product size: L176×W46×H30(mm)

Weight:145g

Package Included:

1 Piece of Bincolor BC-422 DIP Switch Duplex Push Dim Button PWM Control Led Controller

Bincolor_Controller_BC_422_1

Bincolor_Controller_BC_422_2

Bincolor_Controller_BC_422_3

Bincolor_Controller_BC_422_4

Bincolor_Controller_BC_422_5

Bincolor_Controller_BC_422_6

Bincolor_Controller_BC_422_7

Bincolor_Controller_BC_422_8

Bincolor_Controller_BC_422_9



CE and RoHS approved
