Brief Introduction:

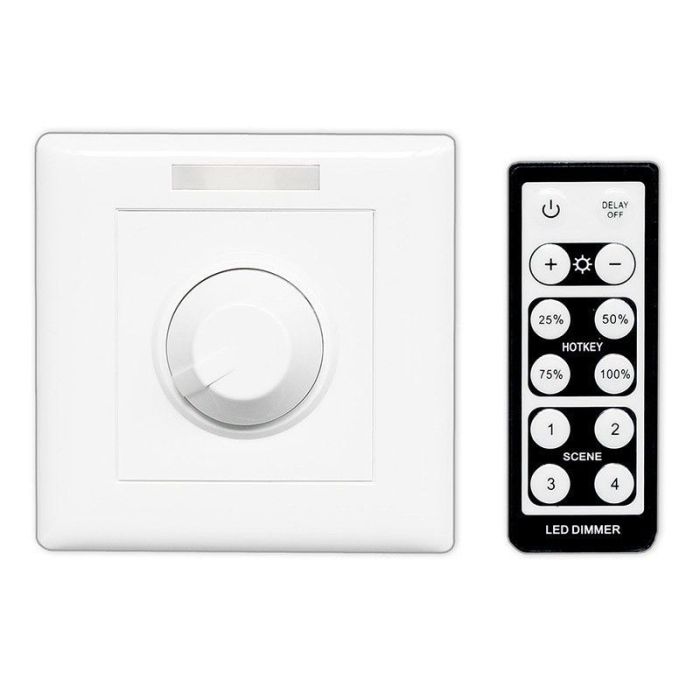

The DC 12V-48V LED dimmer with IR remote control is a high quality device that allows you to
adjust the brightness of the single colour LED strip lights infinitely either with the infinite knob on the
surface-mounted 86-style socket or via an IR remote control, from the comfort of your sofa. The remote
distance is up to 10 metres ( about 33 feet ). Using the suitable constant voltage LED power supply,you
can dim up to 15 metres of 12V 3528 SMD LED single colour strip lights or 10 metres of 12V 30 SMD 5050
LED strip lights or 5 metres of 12V 60 SMD 5050 LED strip lights. You can adjust the brightess of LED strips
lights in accordance with your actual needs. The required level of light can be achieved with a step-less
dmming from an off position to low, up to high and all stages in between.
Attention:The DC12V-24V LED dimmer does not work with AC 12V LED products, it only dimes DC 12V-24V
LED strip lights and LED modules.
Product Specifications:led dmx512 dimmer
Model:BC-320-DMX512
Input power:DC12V-DC24V
Output signal:DMX512
Dimming range:0~100%
Grey step:256 levels
Switch size:L87×W87(mm)
Package size:L96×W91×H61(mm)
Gross weight:200g
Note:Remote Battery is not include
Product Features:
Standard 86-style socket, easy to install.
Infinite knob style dimming and wireless IR remote dimming, easy to operate.
Full range 0~100% brightness adjustment. 4096 scale levels, light is soft and stable without any flicker.
Delay OFF button, fluorescent indicator, users friendly.
25%,50%,75%,100% , 4 DIY modes, fast adjustment.
Automatically adapt to DC12-48V working voltage.
Can be connected with power repeaters to expand power output.
Package Included:
1 Piece of Bincolor BC-320-DMX512 Dimmer with IR Remote Knob DMX512 Switch Led Controller
CE and RoHS approved
