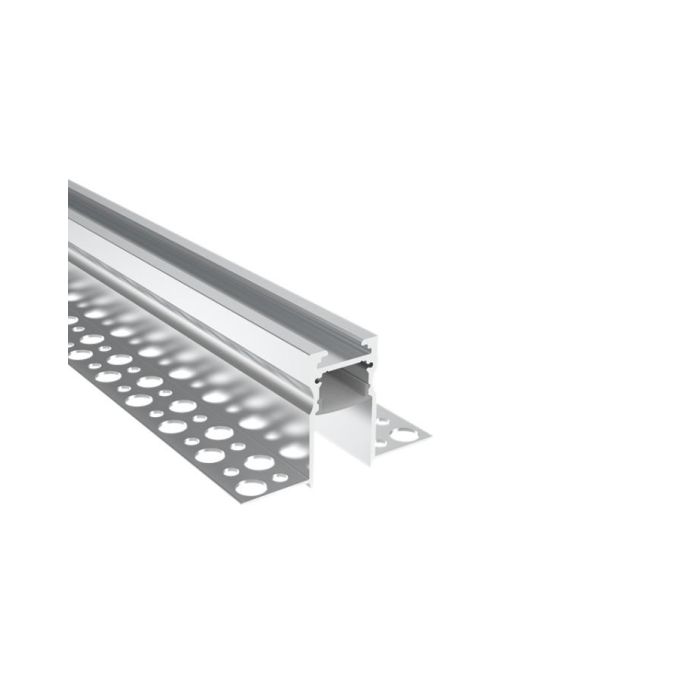

The Trimless Aluminium LED Light Channels, which with low glare profile design for indoor architectural lighting, can be flush
mounted on drywall/plasterboard/marble/tile structures and are easy to install and maintain. LED Strip Light Aluminum Channels
are made of extruded aluminum material with silver anodized surface treatment, anti-oxidation resistance, and a longer lifespan
than similar products. There are three colors available: silver, white and black. The standard length is 1M and 2M and can be cut to
any length, custom lengths available. There are two types of diffusers available: the PC semi-clear cover and the prismatic cover,
you can use them for various lighting effects. The inner width is 13.5mm and can work with COB LED Light Strips and SMD LED
Strips; the max-width of the PCB board can not be over 13mm.
Features:
Model: ALP161
Material: Extruded Aluminum
Size: 60.9*37mm(W*H)
Surface Treatment: Anodized Silver
Colors: Silver(Default), Black, White
Standard Length: 1M
Other Lengths Available: 1.5M, 2M
Custom Length Available: YES
Inner Width: 13.5mm
Can Work With Flexible LED Light Strips(Width Of PCB Board Not Over 13mm)
Diffusers: PC Diffused Cover, Semi-Clear Diffused Cover, Prismatic Cover
Tolerance: ±1%
IP Rating: IP20 Non-Waterproof
End Caps With Hole/Without Hole Included
90°，180° And 90° Vertical Connectors Sold Separately
Installation: Trimless Recessed Mounting
5 Years Warranty
Includes:
1 Set of LED Light Channel With Diffuser
End Cap With Hole
End Cap Without Hole
CE and RoHS approved
