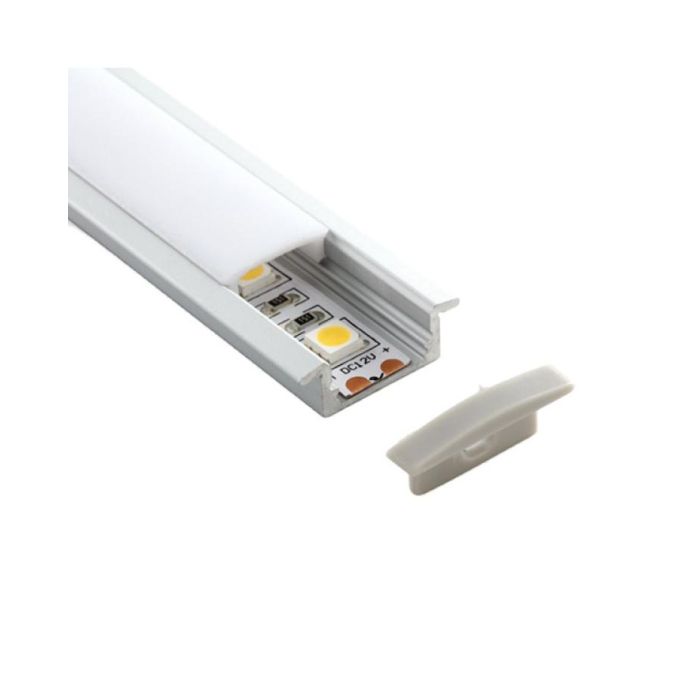

The Recessed Aluminum LED Profiles are the perfect choice for illuminating various millwork projects. These U-shaped Light Profiles
are designed to recess into surfaces, providing a clean, seamless look in cabinetry, shelving, cabinets, desks, etc. They are made of
high-quality 6063-T5 aluminum material with anodized surface treatment, anti-oxidation resistance, and a longer lifespan. It has a
flanged exterior lip to allow it to be sunken into an opening with the flange to ensure a neat finish for flush mounted. There are 6
types of Diffusers available: PC series and PMMA series. All of them are made of brand-imported material, and anti-yellowing, and
you can choose for different transmittance. The standard length is 1M and 2M and can be cut to any length, custom length available.
The inner width is 12.2mm, allowing the max width of Strip Lights to be 12mm. Recommend installing high-density COB Strip Lights as
the light source to provide a bright, seamless glow. The Aluminum Profil can work as a heat sink for better heat dissipation, extending
the lifespan of Strip Lights. End caps with wire holes and without wire holes are included.
Features:
Material: 6063-T5 Aluminum Alloy
Surface Treatment: Anodized
Model: ALP001R
Size: 23.2mm(W)*8mm(H)
Colors: Silver(Default), White, Black
Inner Width: 12.3mm
Allows The Max Width Of LED Strips: 12mm
Power: <15W/M
Standard Length: 1 Meter
Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
Custom Length Available: YES
Diffusers Available: PMMA Opal Matte Cover /PMMA Semi-Clear Cover /PMMA Clear Cover /PC Diffused Cover/Black PC Cover
Tolerance: ±1%
IP Rating: IP20 Non-waterproof
ABS End Caps With Holes/Without Holes Included
Installation: Recessed Mounted
Applications: Recessed In Millwork, Cabinets, Desks, Show Cases, etc
Power Supply, Dimmer, And LED Strips Sold Separately
5 Years Warranty
Package:
1 set of Recessed Aluminium LED Profiles With Diffusers
End Caps(With Wire Holes And Without Wire Holes)
Applications:
Home And Office Decoration: Wardrobes, Cabinets, Kitchen Walls, House Wooden Walls, Desks, Show Cases, etc.
For Furniture, Cabinetry, and Shelving Projects.
CE and RoHS approved
