5M UCS1903 Addressable RGB LED Strip + RF Controller + Power Adapter
This 1903 RGB LED Strip is a wonderful dream chasing color LED strip light with 133 modes and brilliant color,
which would work smoothly and properly. With 1903 IC inside, it can make sure several light strips work synchronously.
Long service life, more than 50,000 hours. It is shockproof, waterproof and dust-proof. It is widely used for home decoration,
hotels, clubs, bar, shopping malls, show exhibition, KTV, holiday, event, and it is also applied in backlighting, concealed
lighting, channel letter lighting, automobile and bicycle decoration, etc.
Model: SMD 5050 RGB 1903 intelligent strip
Working voltage: DC 12V
Current: 3A
LED Quantity: 30 LEDs per meter, total 150 LEDs per roll
Signal: 1903 IC chip
IC Quantity: 10 ICs per meter, total 50 ICs per roll
Wave length(NM): Red-650nm, G-520nm,B-460nm
Power(W/M): 7.2 W/M, 36W for 5 Meters (16.4Ft)
View angle: 120 degrees
Life span: more than 50000hrs
Dimension: 500cm*12cm*2.2mm
Protection rate: IP67 Silicon Tube waterproof
Details of 133 Modes RF Controller:
Dimension: 93 x 58 x 25 mm
Working voltage: 12V DC
Features:
- By adopting two groups of SPI signal outputs, this controller can control the light strip within 50 meters
and run 500 pieces of 1903 ICs.
- Adopts controller panel, choose and adjust speed through the wireless frequency remote control with 8
buttons. 133 different changing modes and speeds (please refer to the user guide for details)
- With memory storage function, which means data can be saved even when there is a power failure.
Remote control:
Dimension: 84 x 36 x 16 mm
Functions of controller panel:
- ON/OFF
- PAUSE: Play/Pause button
- S+: Accelerate
- S-: Decelerate
- B+: Program choosing button, up direction
- B-: Program choosing button, down direction
- M-: Reducing button, to reduce the IC NUMBER
- M+: Adding button, to add the IC NUMBER
Remote control: effective in approx 50 meters
12V 4A Power Adapter:
Plug :We supply all kinds of high quality Power Adapter, all of them will come with the standard
plug of your country, if you need the plug which is different of your country's standard, pls Send us a email, we will follow your direction.

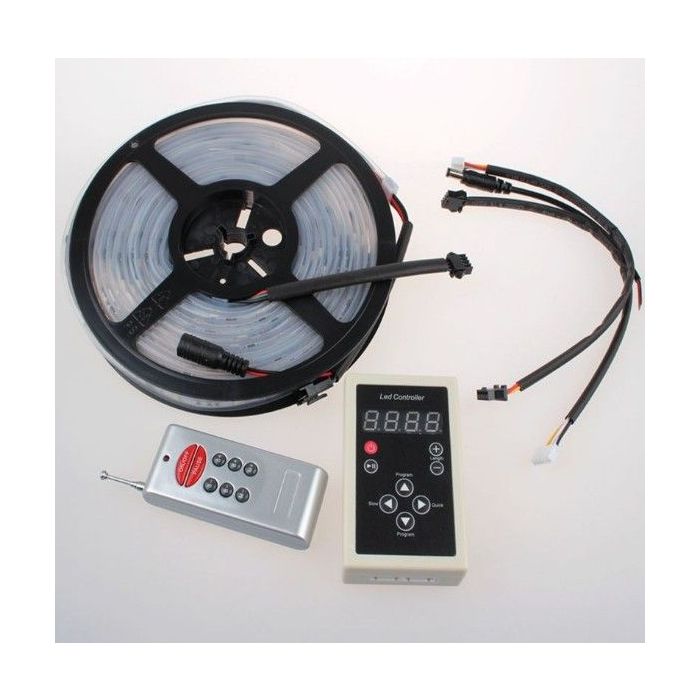

Package Included:
1 Roll of 16.4 Feet (5 Meters ) 1903 IC Digital RGB Programmable LED Strip
1 Set of 133 Modes RF LED Controller
1 Set of DC 12V 4A 48W Power Driver (Power Adapter)
