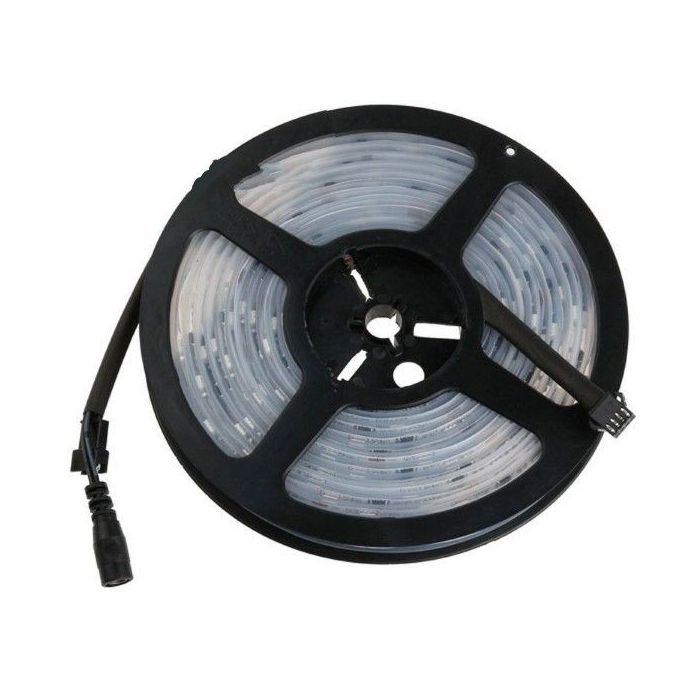

5M 6803 Waterproof in Silicon Tube LED Strip + 133 Change RF Remote Controller
Specifications
LED Strip:
IC Type: 6803 IC
LED Type: SMD5050 RGB
View Angle:120 degrees
Working Voltage: 12V DC
LED Quantity: 30 LEDs per meter, total 150 LEDs per roll
IC Quantity: 10 ICs per meter, total 50 ICs per roll
Working Tempreture: -20 to 50C
Protection Rate: IP67 waterproof with silicon tube around the strip
Luminous Flux: 390-450 Lumens/Meter
Size: L500cm (5M) x W1.2cm x T0.2cm
133 RF Controller:
Quantity:1pc
Working temperature: -20-60degC
Supply voltage:DC12V
Output:SPI signal
External dimension:L90 X W60 X H25 mm
Net weight:95g
Gross weight:120 g
Static power consumption:2.2W
Captible with 6803IC strips, with 133 Color Changes
Function of remote panels
ON/OFF: ON/OFF button,it can open or close led anytime.
MODE: Play/pause button, pressing this button to pause,you can see the static affection of led.
S+:Speed quick button, the least number is 1
S-: Speed slow button, there are 100 step in all, the most number is 100
B+: Program choosing button,up direction,there are 132programs in all.
B-:Program choosing button,down direction.
M -: Reducing button, to reduce the IC NUMBER, the least number is 3
M+: Adding button, to add the IC NUMBER, the most number is 1024
Package Included:
1 Roll of 5 Meter Waterproof in Silicon Tube LED Strip
1 piece of LED controller
1 piece of Remote control ( battery not include )
2 pieces of Connector cable
1 piece of DC male connector cable
1 piece of User Manual
CE and RoHS approved
