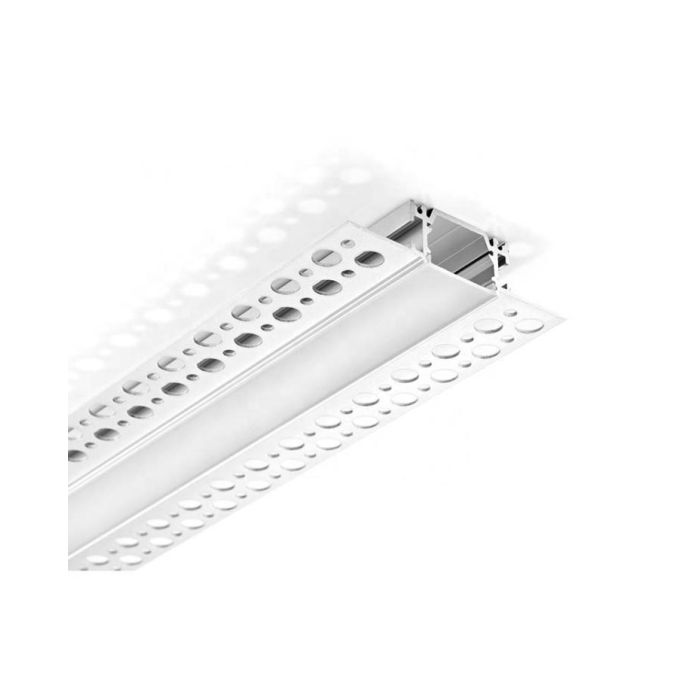

Check the 5/8" Recessed LED Strip Plasterboard Profile with flange is an ideal solution for creating a flush mount LED installation
on the drywall in ceilings or walls, designed to fit into the gap between drywall sheets and can be used to create an aesthetically
pleasing installation for architectural lighting. Made of 6063-T5 aluminum alloy material with silver anodized surface treatment,
anti-oxidation resistance, and longer lifespan. The standard length is 1M, you also can choose other lengths like 0.5 meters, 1.5
meters, 2 meters, and max 3 meters. There is only one type of diffuser available: the PC diffused cover, which is made of stable
material, anti-yellowing, and perfect light distribution. The inner width is 15.8mm and allows the max width of Strip Lights to be
15mm, recommend adding high-density SMD or COB Tape Lights as the light source without dark areas and visible light dots.
Easy to install the LED Strips on the Alu Profiles easily, and the aluminum profile can be used as a heat sinker for better heat
dissipation. There are 3 types of couplers sold separately, you can use them to reconnect the Recessed LED Profiles for various
shape designs.
Features:
Material: 6063-T5 Aluminum Alloy
Surface Treatment: Silver Anodized
Model: ALP080-R
Color: Silver, White, Black
Size: 73.4*18.5mm
Inner Width: 15.8mm
Allows The Max Width Of Strip Lights To Be 15mm
Standard Length: 1Meter
Other Lengths Available: 0.5Meter, 1.5Meter, 2Meter, 2.5Meter, 3Meter
Custom Length Available: YES
Diffusers: PC Diffused Cover
End Caps Included
Installation: Recessed Into 5/8" Drywall
Usage: Architectural Lighting Projects
5 Years Warranty
Includes:
1 set of LED Strip Plasterboard Profile
End Caps
CE and RoHS approved
