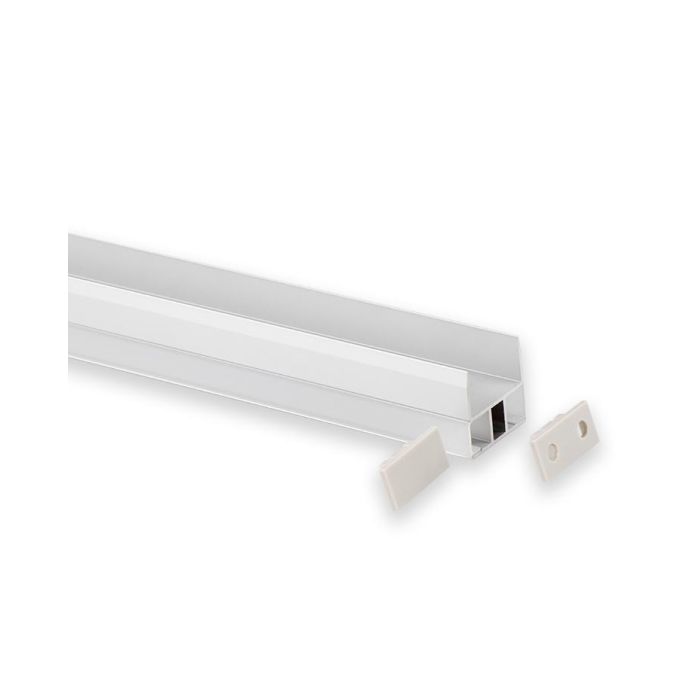

Check the Strip Light Housing, which is designed to add light with shelf, and can be mounted on the 25mm shelf board
, perfect for a variety of applications such as coves, display cases, bookshelves, wine cabinets, and more. The LED Housings
are made of 6063-T5 aluminum material with an anodized surface treatment, anti-oxidation resistance, and a longer lifespan
than similar products. There are three colors available: silver, white and black. The standard lengths are 1M and 2M and can
be cut to any size for your project, and custom lengths are available. Only one type of diffuser is available: the PC diffused
cover, which is made of imported brand material, anti-yellowing, perfect lighting distribution, soft light, and even illumination
output without hotspots. The inner width is 10mm and 10.5mm, allowing the max-width of LED Strips to be 10mm. An aluminum
base can be a heat sinker for better heat dissipation. End caps with wire holes are included, making it easy to connect the LED
Strips to the LED Power Supply to light up or connect to a dimmer to adjust the brightness.
Features:
Material: 6063-T5 Aluminum
Size: 27.9*27.6mm(W*H)
Surface Treatment: Anodized
Color: Silver(Default), Black, White
Standard Length: 1M
Other Lengths Available: 1.5M, 2M
Custom Length Available: YES
Diffusers: PC Diffused Cover
Inner Width: 10mm/10.5mm
Max Width Of LED Strips: 10mm
Max Power: 24W/M
Beam Angle: 100°
IP Rate: IP20 Non-waterproof
Tolerance: ±1%
End Caps With Wire Holes Included
Installation: Surface Mounted
Applications: Light Up Shelf
5 Years Warranty
Includes:
1 set of Strip Light Housing With Diffusers
End Caps(With Wire Hole And Without Wire Hole)
CE and RoHS approved
