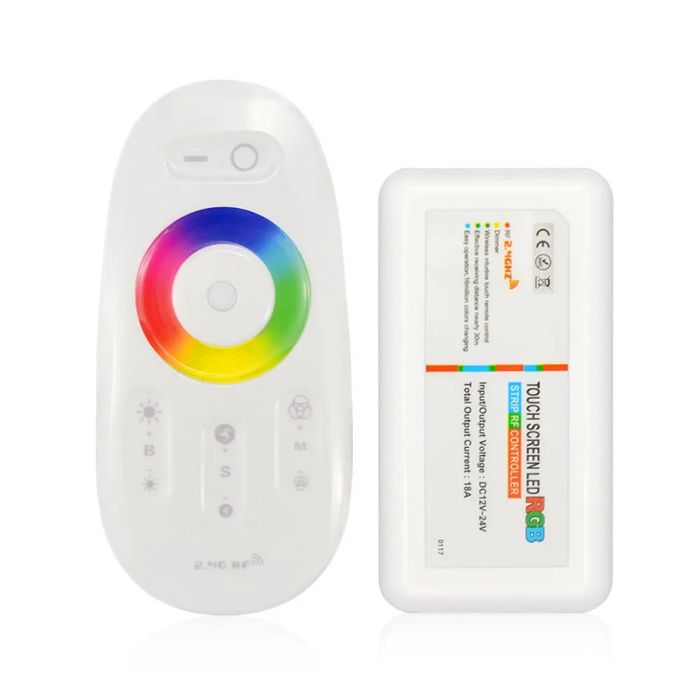

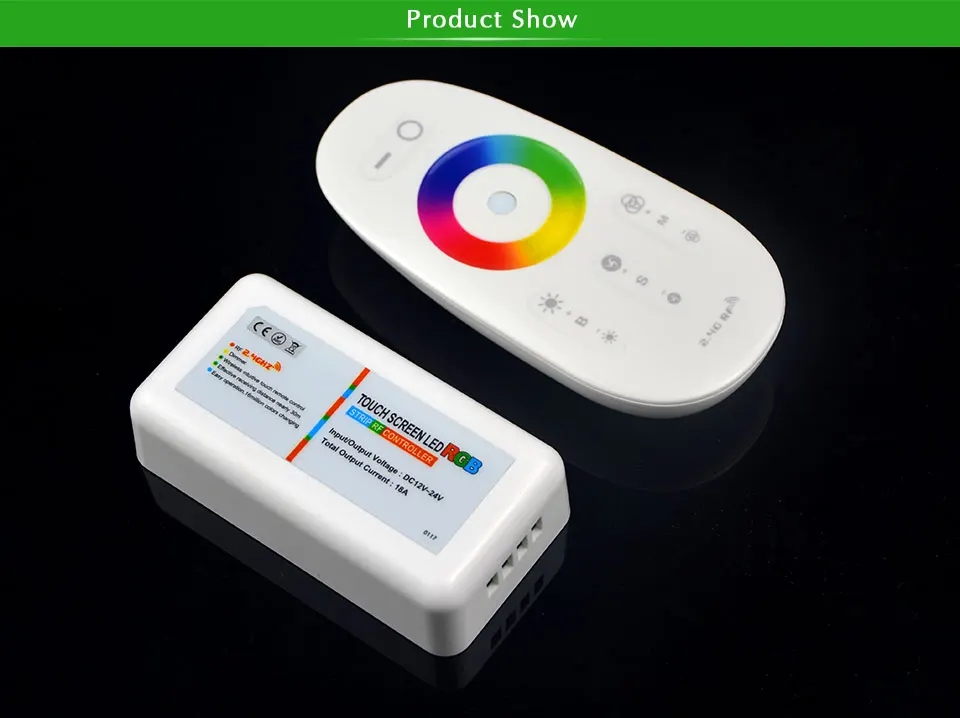

2.4G RGB Controller DC12-24V Touch Screen RF Remote Control For LED Strip
Product Description:
This item is a high-performance RGB led touch remote controller, adopting the most
advanced PMW control technology, controlling all RGB led products with four lines and
three circuits(common anode), owning 640 thousand colors and 20 automatical changing modes to choose.
Also, it has the momory function(that is to say, the previous settings will be resumed
when power on again). It is widely used in led RGB strip light,led module and so on.
With the technology of the 2.4G high frequency wireless remote control, it has the characteristics
of low power consumption, long distance transmission, and strong anti-interference ability,
high speed telecommunication, etc.
The remote looks fashionable and elegent, with simple and practical functions of color
changing and brightness dimming, the capacitive touch screen design makes the remote easy to use.
The modular design and easy screwed terminals enable the controller easy to match with all kinds of led light products.
Specification:
Item: 2.4G Touch Screen LED RGB Controller
Led type: High Power LED
Color: White
Input voltage: 12-24V DC
control Way: RGB 3 Channels
MAX load current: 6A each color
connection mode: common anode
net weight: 150g
Controller battery: 2PCS* AAA battery(not included)
Bettery is not included because of the security reason and custom problem during transport;
Bettery model is AAA,Please buy it yourself in your local market
Control distance: 30m
Programs:20 kinds
Remote Size: 110*52*20mm
Controller Size:85*45*23mm
Attention:
1. Please check whether the input voltage of the constant voltage power supply is in
accordance with the controller, and please check the connection of both the cathode and anode, otherwise the controller will be broken.
2. Please don't connect wires with power on. Please switch on again only when it is in
right connection and no short circuit.
3. Please keep your finger off the touch ring when installing the batteries, to improve its sensitivity,
and use the remote (3 seconds later) after the batteries are installed. Please reinstall the batteries, if the touch ring is found low-sensitivity.
4. Please do not use the controller in the place with widely range metal area or strong
electromagnetic wave nearby, otherwise, the remote distance will be seriously affected.
Application:
1. The input voltage of this controller should be follow the specifications, other high
voltage would most probably destroy it
2. The 4wires coming out of the controller can’t be incorrectly interconnected or short circuit could occur
3. Connect the wires of the controller and LED fittings as per the instruction
4. Don’t peel off the label on the controller in case any indication information will be missed.
5. The standard warranty is one yeas Our company won’t be responsible for any damage
of the Controller due to any wrong operation.
Package including:
1 Piece of LED RGB Controller
1 Piece of LED remote controller
1 Piece of manual user
