2.4G 3Pin XLR Wireless DMX512 Transmitter And Receiver
DMX512 wireless receiver/transmitter transmit standard DMX512 protocol
data (generated by console) by wireless way, which solves lighting control issues
of wireless transmitting completely between console and lighting, lighting and
lighting and so on, It get rid of connecting cable limited completely. And also can
ensure without any time delay when signal data is transmitting, signal data is real
time and reliably. This product adopt 2.4G ISM frequency section (global opening section)
without permission limited, High effective GFSK modulate communication design.
126 frequencies band, FH design, and frequency-hopping synchronization automatically.
Product Features:
Transmitting/receiving standard DMX512 protocol data of console，and the master-slaver
on line signal of the same kind of lighting each other.
Single key to operate，tricolor LED indicator. The LED indicator bright：No DMX or wireless
signal. Red LED flash：Transmitting. Green LED flash：Receiving.
126 frequencies band, FH design, and frequency-hopping synchronization automatically. 4. 7
groups ID code to set these different wireless nets without any interfere each other in the same place.
Input voltage：12VDC 500mA min.
Communication distance：500m（visible distance).
Max transmitting power：20dBm
Receiver sensitive：-94dBm
Signal socket：3/5pin male XLR.

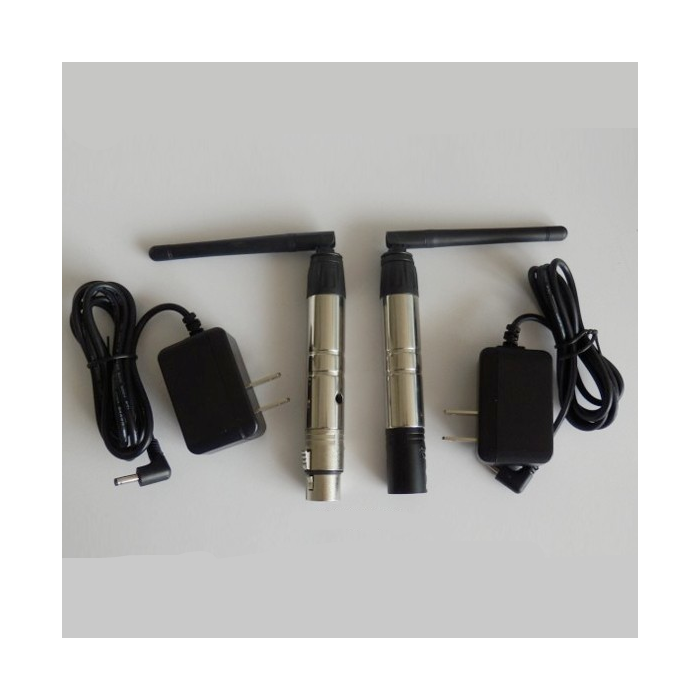

Package include:
1 Piece of 2.4G 3Pin XLR Wireless DMX512 Transmitter
1 Piece of 2.4G 3Pin XLR Wireless DMX512 Receiver
CE and RoHS approved
