Working voltage: DC 12V
Working current: 30 mA
Working consumption: 0.3W each, 50 LEDs for 1 roll, total 15 watts
IC type: UCS1903
IC quantity: 50pcs
LED quantity: 50pcs ( 50 Pixels )
Punch hole diameter size: 12mm
RGB LED quantity: 50pcs
The length of this light string is approx 5 meters (16.4ft), the length between each LED is about 10cm (0.33ft).
Gray scale: 256 levels
LED type: 8mm full RGB strawhat LED, brand Epistar LED, excellent performance
Dimension: 12mmx14mm
Viewing angle: 120 degrees
Protection rate: IP68 Waterproof
Color of wires: mix colors
Working temperature: 40~60 Celsius

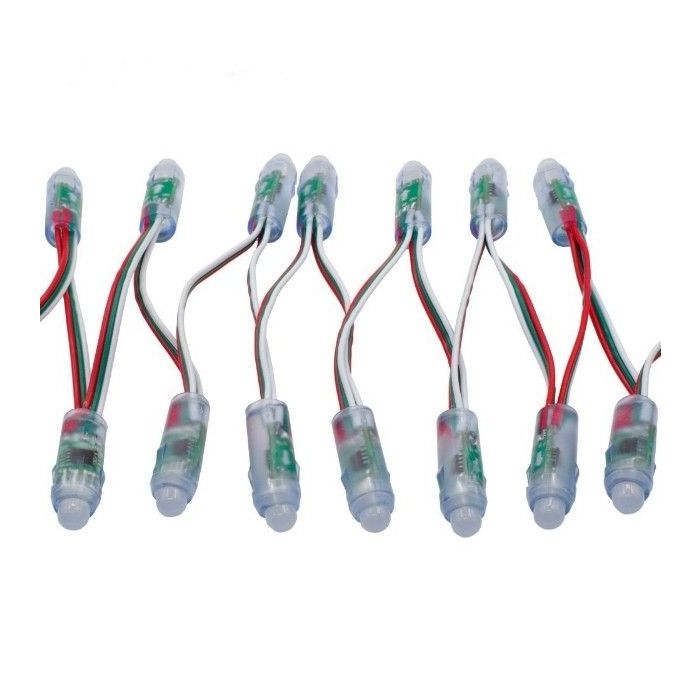

RGB pixels are digitally-controllable lights which you can set to any color or animation
Each RGB LED and controller chip is molded into a 'dot' of silicone, the dots are waterproof and rugged, there are
four flanges molded in so that you can 'push' them into a 12mm drill hole in any material up to 1.5mm/0.06" thick.
This digital IC LED pixel strip works with SD controller
Individually Control
Conformal Coating, PVC glue protection
Easy installation (punching 12mm hole on metal panel)
Application: outdoor, indoor use, cove lighting, path and contour lighting, backlight for signage letters, architectural
lights for canopy, corridor, window, archwa, DIY lights for home use, marine light, task lighting, replacement of fluorescent
light, decorative lights for holiday, event, show, exhibition
Package Included:
1 Sting of 12V 12mm RGB Pixel UCS1903 Module Led String Waterproof Digital Light 50 Nodes
