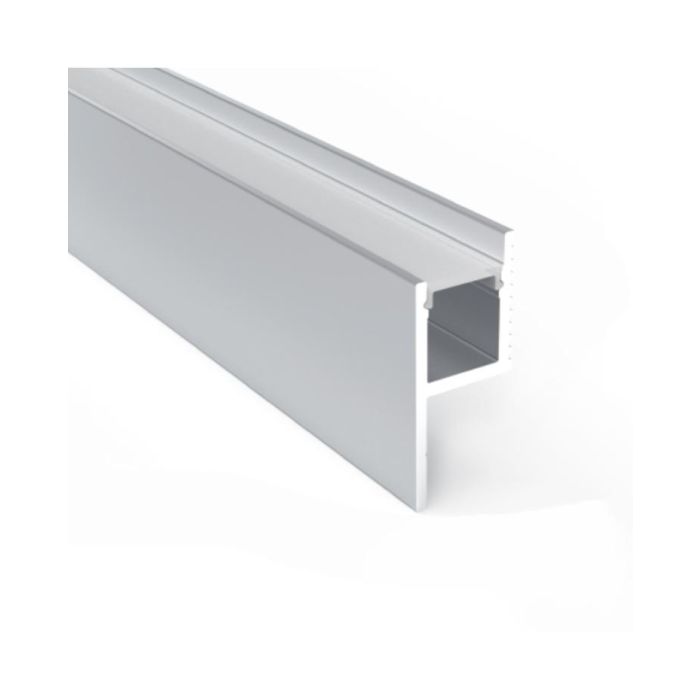

The LED Lighting Fixture for Architectural Lighting, easily recessed into the 12.5mm drywall, will enhance the overall
ambiance and highlight the architectural features. The inner width is 10.3mm, allowing the max-width of LED Strips
to be 10mm. It is easy to install the SMD LED Tapes, or COB LED Strips inside, and the Aluminum Base can be worked
as a heat sinker for better heat dissipation. The LED Strip Fixtures are made of 6063-T5 extruded aluminum material
with anodized surface treatment, better anti-oxidation resistance, and a longer lifespan than similar products. Only
one type of diffuser is available: the PC diffused cover, which is made of brand material, anti-yellowing, perfect lighting
distribution, and soft light output. End caps with wire holes are included, making it easy to connect the LED Strips to a
power supply to light up or a dimmer to adjust the brightness. The standard length is 1 or 2 meters and can be cut to the desired size to fulfill your needs.
Features:
- Model: ALP166
- Material: 6063-T5 Extruded Aluminum
- Size: 33*14mm(W*H)
- Colors: Silver(Default), White, Black
- Standard Length: 1M
- Other Lengths Available: 1.5M, 2M
- Custom Length Available: YES
- Diffuser: PC Diffused Cover
- Inner Width: 10.3mm
- Max LED Strip Width: 10mm
- Max Power: 15W/M
- Beam Angle: 100°
- IP Rating: IP20
- Tolerance: ±1%
- Installation: Recessed
- End Caps With Holes/Without Holes Included
- 5 Years Warranty
Includes:
1 Set of LED Lighting Fixture With Diffuser
End Cap With Hole/Without Hole
CE and RoHS approved
